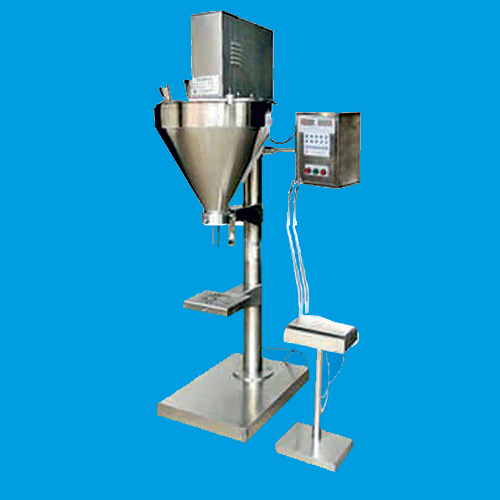

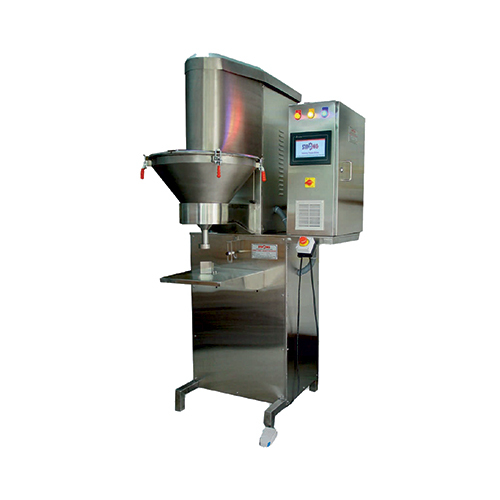

Electric Powder Filling Machine

Electric Powder Filling Machine Specification

Dimension (L*W*H)
Approx. 650 x 450 x 1100 mm

Voltage
220V / 110V, 50-60 Hz

Filling Range
2 gm to 1000 gm (Adjustable)

Weight
Approx. 50 120 kg

Core Components
Motor, PLC, Hopper, Filling Nozzle

Grade
Semi-Automatic / Automatic (customizable)

Filling Material
Powder, Granules, Spices, Chemicals, Pharmaceuticals

Motor Power
0.5 HP to 1.5 HP (Depending on Model)

Capacity
10 30 Bottles/Minute (depending on product and container volume)

Driven Type
Electric

Packaging Type
Bottles, Jars, Pouches

Usage & Applications
Suitable for filling powders into bottles, jars, pouches in food, chemical, and pharmaceutical industries

Air Consumption
0.1 0.3 m/min (when equipped with pneumatic features)

Product Type
Powder Filling Machine

Control System
PLC Control Panel with digital display

Material of Construction
SS304/SS316 for contact parts

Filling Accuracy
±1% (depending on powder flow characteristics)

Supported Bottle Height
Up to 300 mm

Noise Level
< 65 dB

Safety Features
Overload protection, Emergency stop switch

Operation Mode
Foot switch and auto mode available

Hopper Volume
18 - 30 Liters

Nozzle Type
Interchangeable nozzles for different bottle opening sizes

Cleaning Type
Tool-free disassembly, easy to clean

Electric Powder Filling Machine Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
15-20 Days

Main Domestic Market
All India

About Electric Powder Filling Machine

An Electric Powder Filling Machine uses electric power to automate the process of filling powdered products into containers. By leveraging advanced electric controls and automation, these machines can significantly enhance productivity and consistency in various industries. Electric control systems offer superior accuracy in filling volumes and speeds. We ensure the machine complies with industry standards and regulations for safety and hygiene. These machines are widely used in various industries such as pharmaceuticals, food and beverage, chemicals, and cosmetics. Electric Powder Filling Machine provides an efficient and accurate solution for automating the powder packaging process.

Advanced Precision Filling

Engineered for reliability, this machine achieves remarkable filling accuracy within 1%, ensuring consistent, waste-free dosing of a range of powders and granules. Adjustable filling ranges (2 gm to 1000 gm) accommodate various container sizes, supporting production lines in food, chemical, and pharmaceutical sectors.

User-Friendly Operation and Safety

With both foot switch and automatic modes, operators can choose according to workflow needs. The intuitive PLC control panel with digital display streamlines settings adjustments, while features like overload protection and an emergency stop switch enhance workplace safety.

Hygienic and Easy Maintenance

Designed for rigorous standards, all powder-contact parts are made from SS304/SS316 stainless steel. Tool-free disassembly enables quick, thorough cleaning, minimizing downtime between batch changes and ensuring compliance with hygiene protocols.

FAQ's of Electric Powder Filling Machine:

Q: How does the Electric Powder Filling Machine ensure high filling accuracy?

A: The machine uses precision controls and PLC digital systems to achieve a filling accuracy of 1%, though actual results may vary depending on the flow characteristics of the powder being dispensed.

Q: What types of powders and containers can this filling machine handle?

A: This machine accommodates a wide variety of products including spices, food powders, chemicals, and pharmaceuticals. It can dispense into bottles, jars, and pouches, with adjustable filling ranges from 2 gm to 1000 gm and support for bottles up to 300 mm in height.

Q: When should I choose between automatic and foot switch operation modes?

A: The automatic mode is ideal for higher-volume, continuous production lines, while the foot switch mode allows operators more control during smaller batches or when handling different container types.

Q: Where can this powder filling machine be integrated or used?

A: The machine is well-suited for integration into production facilities across food, chemical, and pharmaceutical industries, particularly where accurate, hygienic powder dispensing is needed.

Q: What is the cleaning process for the machine, and how often should it be performed?

A: Cleaning is straightforward due to tool-free disassembly of contact parts. It's recommended to clean the machine after each production batch, or more frequently when switching between different types of powders.

Q: How does the machine enhance operational safety?

A: It is equipped with essential safety mechanisms like overload protection and an emergency stop switch, safeguarding both the equipment and operators during regular use or in unforeseen scenarios.

Q: What are the primary benefits of using this powder filling machine?

A: Key advantages include precision filling, versatile application across various container and powder types, streamlined cleaning, low noise emission (<65 dB), and enhanced operator safety, all supporting efficient, high-quality production.
